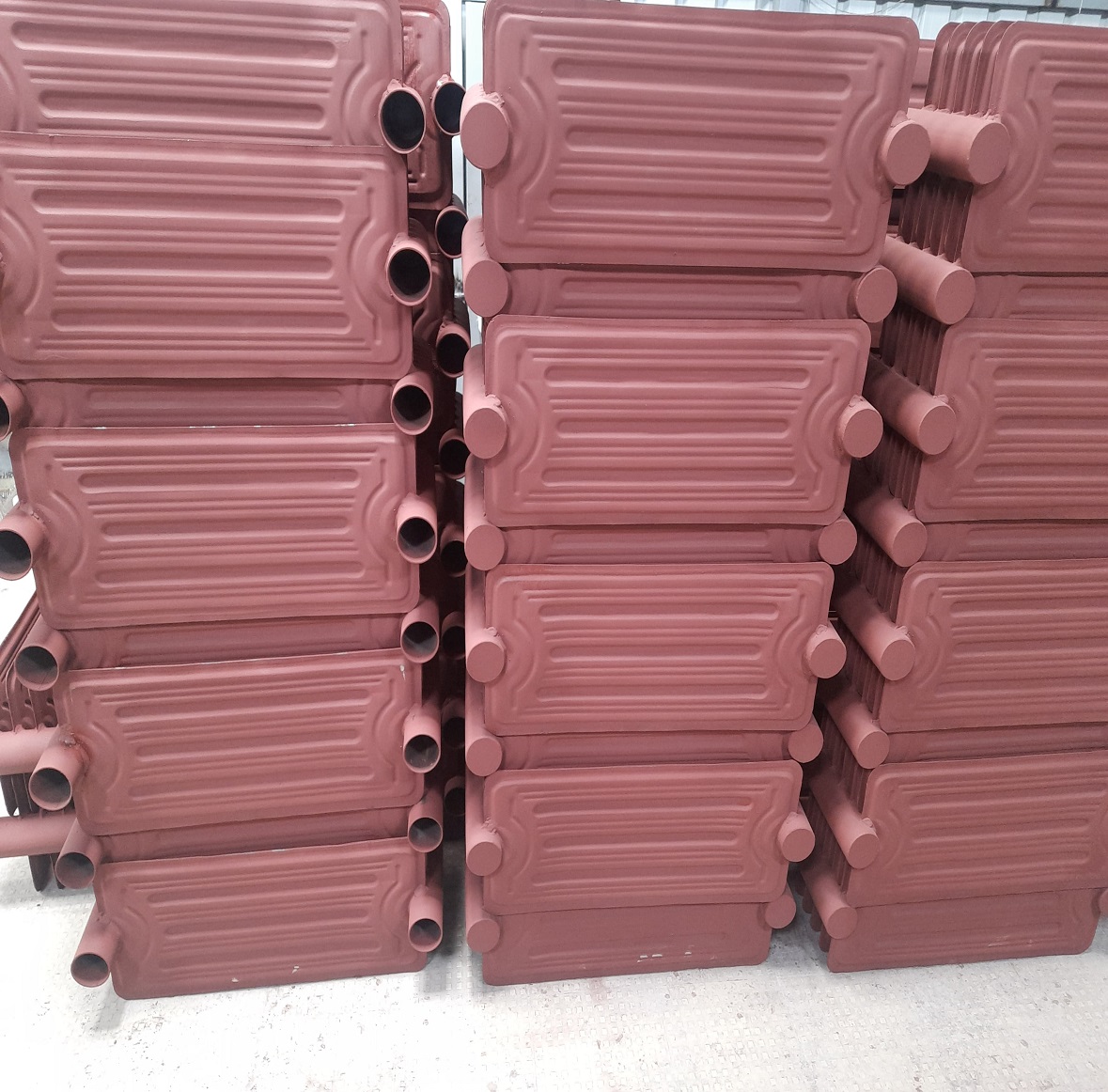

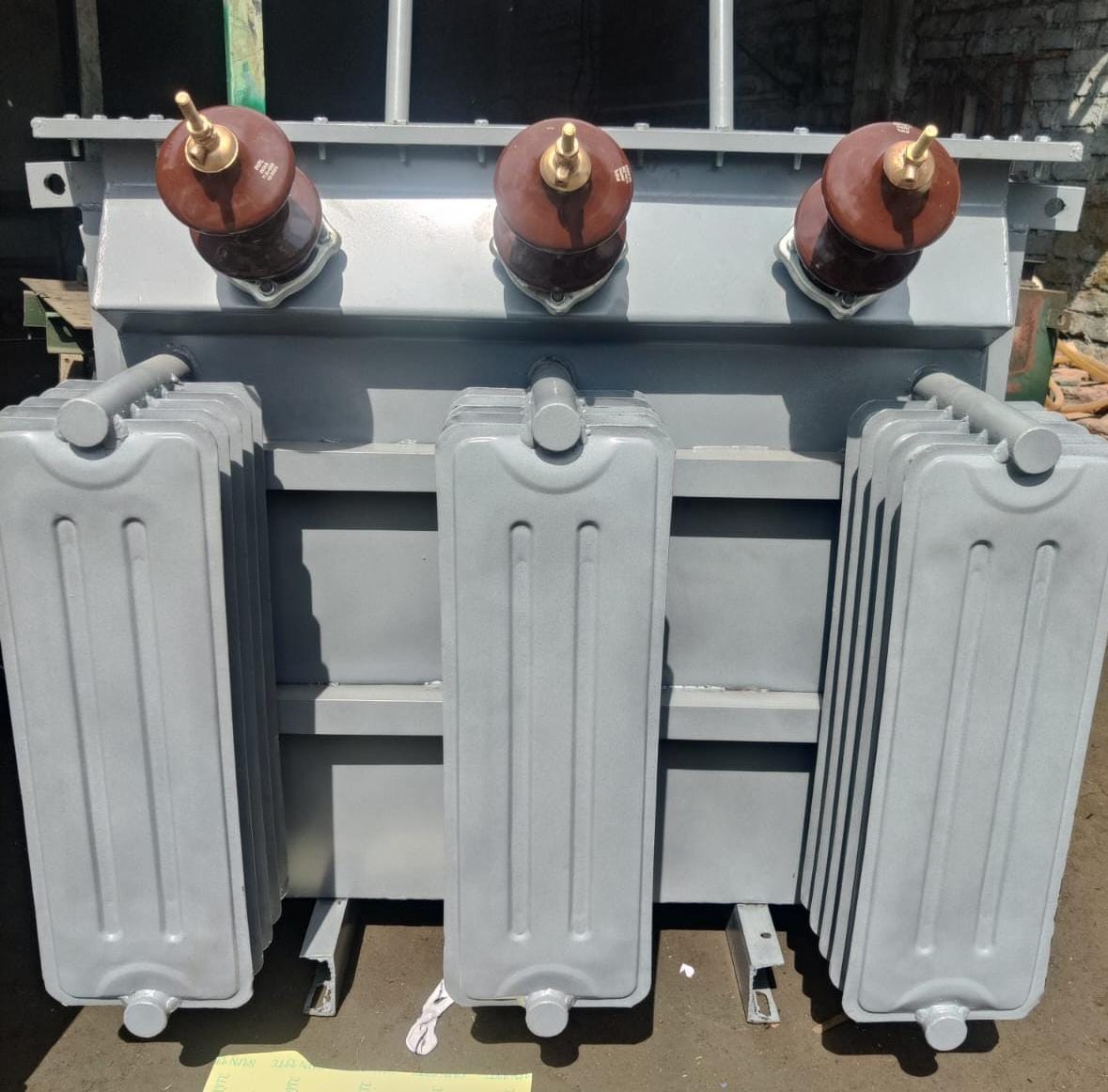

Patronize Machine Tools And Services is a prestigious manufacturer & supplier of Transformer Radiators. These radiator of transformers are used for accelerating the transformer's cooling rate. This important function is critical in enhancing the loading capacity of distribution and power transformer. We are offering Welded type and Flange type radiator and others. All the Transformer Radiators are manufactured in our company located in Indore, India and we are looking for domestic and Internationals inquiries from All over the world . The range is available in width of 300 mm, 240 mm, 230mm and other dimensions are also possible, for which clients can contact us.
We manufacture Radiators with width of
We would like to take this opportunity to briefly introduce our company PMTS, so that you may consider adding our company to your list of approved Transformer radiator providers. PMTS is an Insured service provider based in Indore and is engaged in a wide range of Weldable & Flange type radiator in the distribution power transformer manufacturing field. The Weldable Type Radiator we offer are widely used in various power supplying works. Precision designed, these radiators are highly effective in distribution transformers. The small radiators we offer require fewer accessories and can be directly welded to the transformer tanks. About our radiator:
Raw Material and Process Flow :
I. Radiator element having width of 300/240/230 mm using CRCA steel (TATA) of ''D'' grad having 1.0/ 1.2mm
thickness as per customer's requirement.
II. Centre distance between top and bottom header pipe (C.C.) shall be minimum 400mm. and maximum
2000mm. is steps of 100mm. & Assemblies of 2 to 22 fins, as per customer’s requirements.
III. Pitch range is 75mm and 50mm in general. We can also provide 60mm.pitch on the specific requirement of
the customer.
IV. The header pipe thickness shall be 2.5 mm minimum and having outside diameter of 50/75mm. as may be
the requirement.
V. Standard accessories include M.S. square/round flanges, air vents, drain plugs, lifting hooks, and bracing straps, with customization available as per customer specifications.
A 300mm transformer radiator dissipates heat from transformer oil, ensuring efficient cooling and longevity. It features durable fins for optimal heat exchange in power distribution systems.
A 240mm transformer radiator dissipates heat from transformer oil, ensuring efficient cooling and longevity. It features durable fins for optimal heat exchange in power distribution systems.
